webspeed server connecting error

[Srinivasa Rao]

when i am starting localhost server under progress explorer it's prompting following error.

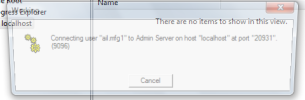

connecting user "ail.mfg1" to Admin Server on host "localhost" at port 20931".(9096)



but after that i am able to start web broker wsbroker1 and it's stands on Active status.

but when i try to open workshop in browser
it's prompting following error in browser

Server Error in Application "DEFAULT WEB SITE"
Internet Information Services 7.5

Error Summary
HTTP Error 404.0 - Not Found
The resource you are looking for has been removed, had its name changed, or is temporarily unavailable.Detailed Error Information
ModuleIIS Web Core
NotificationMapRequestHandler
HandlerStaticFile
Error Code0x80070002
Requested URLhttp://localhost:80/scripts/cgiip.exe/WService=wsbroker1/workshop
Physical PathC:\inetpub\wwwroot\scripts\cgiip.exe\WService=wsbroker1\workshop
Logon MethodAnonymous
Logon UserAnonymous
Most likely causes:

• The directory or file specified does not exist on the Web server.
• The URL contains a typographical error.
• A custom filter or module, such as URLScan, restricts access to the file



[RealHeavyDude]

Please provide more details on what you did to set up this thing. Plus, you should also mention the Progress/OpenEdge version you are running. The Progress explorer is not shipped with reasonably recent versions of Progress OpenEdge anymore ...

Did you have a look in any log file - web server, name server, webspeed broker - what do they say?

Heavy Regards, RealHeavyDude.



[Srinivasa Rao]

Thank you RealHeavyDude for your valuable response.

I have installed webspeed in my system and i would like to work on web applications based on webspeed.
The version i used was

Progress Explorer 9.1E

Progress Version 9.1E

Version: 9.1E

server log is :-

main>======================================================================
main>(Apr 22, 2013 06:19:44:223) C:\PROGRESS\WRK\wsbroker1.server.log opened.
main>======================================================================
main>(Apr 22, 2013 06:19:44:389) C:\PROGRESS\WRK\wsbroker1.server.log opened.
main>======================================================================
main>(Apr 22, 2013 06:19:44:418) C:\PROGRESS\WRK\wsbroker1.server.log opened.
L-3055>(Apr 22, 2013 06:19:44:906) Log Closed
L-3055>(Apr 22, 2013 06:19:44:935) Log Closed
main>======================================================================
main>(Apr 22, 2013 06:19:49:014) C:\PROGRESS\WRK\wsbroker1.server.log opened.
S-0001>(Apr 22, 2013 06:19:49:036) [4892] WTA server initializing. (8835)

main>======================================================================
main>(Apr 22, 2013 06:19:49:067) C:\PROGRESS\WRK\wsbroker1.server.log opened.
main>======================================================================
main>(Apr 22, 2013 06:19:49:086) C:\PROGRESS\WRK\wsbroker1.server.log opened.
L-3055>(Apr 22, 2013 06:19:49:306) Log Closed
L-3055>(Apr 22, 2013 06:19:49:347) Log Closed
L-3055>(Apr 22, 2013 06:19:49:397) Log Closed
S-0002>(Apr 22, 2013 06:19:49:495) [4036] WTA server initializing. (8835)

S-0003>(Apr 22, 2013 06:19:49:770) [5580] WTA server initializing. (8835)

S-0004>(Apr 22, 2013 06:19:50:544) [2352] WTA server initializing. (8835)

S-0005>(Apr 22, 2013 06:19:50:860) [2396] WTA server initializing. (8835)

S-0003>(Apr 22, 2013 06:19:54:686) [5580] Received RECONNECT from WTB
S-0001>(Apr 22, 2013 06:19:54:713) [4892] Received RECONNECT from WTB
S-0002>(Apr 22, 2013 06:19:54:726) [4036] Received RECONNECT from WTB
S-0004>(Apr 22, 2013 06:19:54:741) [2352] Received RECONNECT from WTB
S-0005>(Apr 22, 2013 06:19:54:998) [2396] Received RECONNECT from WTB
main>======================================================================
main>(Aug 22, 2013 09:31:08:373) C:\PROGRESS\WRK\wsbroker1.server.log opened.
S-0001>(Aug 22, 2013 09:31:10:421) [4792] WTA server initializing. (8835)

S-0002>(Aug 22, 2013 09:31:11:484) [3012] WTA server initializing. (8835)

S-0003>(Aug 22, 2013 09:31:12:496) [4608] WTA server initializing. (8835)

S-0002>(Aug 22, 2013 09:31:12:593) [3012] Received RECONNECT from WTB
S-0004>(Aug 22, 2013 09:31:13:538) [3116] WTA server initializing. (8835)

S-0003>(Aug 22, 2013 09:31:13:611) [4608] Received RECONNECT from WTB
S-0005>(Aug 22, 2013 09:31:14:544) [2080] WTA server initializing. (8835)

S-0001>(Aug 22, 2013 09:31:15:469) [4792] Received RECONNECT from WTB
S-0004>(Aug 22, 2013 09:31:17:676) [3116] Received RECONNECT from WTB
S-0005>(Aug 22, 2013 09:31:18:682) [2080] Received RECONNECT from WTB
L-3055>(Aug 22, 2013 09:42:13:697) Log Closed
main>======================================================================
main>(Aug 22, 2013 09:51:24:227) C:\PROGRESS\WRK\wsbroker1.server.log opened.
S-0003>(Aug 22, 2013 09:51:36:784) [5352] WTA server initializing. (8835)

S-0005>(Aug 22, 2013 09:51:36:791) [5496] WTA server initializing. (8835)

S-0004>(Aug 22, 2013 09:51:36:808) [5408] WTA server initializing. (8835)

S-0001>(Aug 22, 2013 09:51:36:832) [5472] WTA server initializing. (8835)

S-0002>(Aug 22, 2013 09:51:36:854) [5488] WTA server initializing. (8835)

S-0003>(Aug 22, 2013 09:51:43:027) [5352] Received RECONNECT from WTB
S-0001>(Aug 22, 2013 09:51:43:063) [5472] Received RECONNECT from WTB
S-0005>(Aug 22, 2013 09:51:43:114) [5496] Received RECONNECT from WTB
S-0004>(Aug 22, 2013 09:51:43:171) [5408] Received RECONNECT from WTB
S-0002>(Aug 22, 2013 09:51:43:191) [5488] Received RECONNECT from WTB
L-3055>(Aug 22, 2013 10:45:53:242) Log Closed
main>======================================================================
main>(Aug 22, 2013 11:43:40:784) C:\PROGRESS\WRK\wsbroker1.server.log opened.
S-0001>(Aug 22, 2013 11:43:42:796) [3084] WTA server initializing. (8835)

S-0002>(Aug 22, 2013 11:43:44:016) [2356] WTA server initializing. (8835)

S-0002>(Aug 22, 2013 11:43:45:119) [2356] Received RECONNECT from WTB
S-0003>(Aug 22, 2013 11:43:45:143) [5828] WTA server initializing. (8835)

S-0004>(Aug 22, 2013 11:43:45:859) [4372] WTA server initializing. (8835)

S-0005>(Aug 22, 2013 11:43:46:905) [3192] WTA server initializing. (8835)

S-0001>(Aug 22, 2013 11:43:47:041) [3084] Received RECONNECT from WTB
S-0003>(Aug 22, 2013 11:43:49:285) [5828] Received RECONNECT from WTB
S-0004>(Aug 22, 2013 11:43:50:032) [4372] Received RECONNECT from WTB
S-0005>(Aug 22, 2013 11:43:51:036) [3192] Received RECONNECT from WTB
L-3055>(Aug 22, 2013 12:02:21:961) Log Closed
main>======================================================================
main>(Aug 22, 2013 12:03:39:547) C:\PROGRESS\WRK\wsbroker1.server.log opened.
S-0001>(Aug 22, 2013 12:03:41:461) [5712] WTA server initializing. (8835)

S-0002>(Aug 22, 2013 12:03:42:472) [4200] WTA server initializing. (8835)

S-0003>(Aug 22, 2013 12:03:43:460) [5232] WTA server initializing. (8835)

S-0002>(Aug 22, 2013 12:03:43:572) [4200] Received RECONNECT from WTB
S-0004>(Aug 22, 2013 12:03:44:513) [348] WTA server initializing. (8835)

S-0005>(Aug 22, 2013 12:03:45:505) [4932] WTA server initializing. (8835)

S-0001>(Aug 22, 2013 12:03:45:577) [5712] Received RECONNECT from WTB
S-0003>(Aug 22, 2013 12:03:47:555) [5232] Received RECONNECT from WTB
S-0004>(Aug 22, 2013 12:03:48:646) [348] Received RECONNECT from WTB
S-0005>(Aug 22, 2013 12:03:49:636) [4932] Received RECONNECT from WTB
L-3055>(Aug 22, 2013 12:05:23:617) Log Closed
main>======================================================================
main>(Aug 22, 2013 12:12:21:403) C:\PROGRESS\WRK\wsbroker1.server.log opened.
S-0001>(Aug 22, 2013 12:12:28:474) [3404] WTA server initializing. (8835)

S-0002>(Aug 22, 2013 12:12:30:467) [1216] WTA server initializing. (8835)

S-0003>(Aug 22, 2013 12:12:32:622) [3052] WTA server initializing. (8835)

S-0001>(Aug 22, 2013 12:12:34:747) [3404] Received RECONNECT from WTB
S-0002>(Aug 22, 2013 12:12:37:943) [1216] Received RECONNECT from WTB
S-0005>(Aug 22, 2013 12:12:39:345) [3976] WTA server initializing. (8835)

S-0003>(Aug 22, 2013 12:12:41:665) [3052] Received RECONNECT from WTB
S-0004>(Aug 22, 2013 12:12:42:254) [3548] WTA server initializing. (8835)

S-0005>(Aug 22, 2013 12:12:46:547) [3976] Received RECONNECT from WTB
S-0004>(Aug 22, 2013 12:12:47:867) [3548] Received RECONNECT from WTB
L-3055>(Aug 22, 2013 13:13:22:183) Log Closed

broker log is :-

main>======================================================================
main>(Nov 28, 2008 12:09:57:314) C:\PROGRESS\WRK\wsbroker1.broker.log opened.
main>(Nov 28, 2008 12:09:57:594) ubroker version: v91E (15-Jun-04) (8038)
L-3055>(Nov 28, 2008 12:09:57:985) Started listener thread: L-3055 (8043)
L-3055>Starting 5 server threads ... (8053)
S-0001>(Nov 28, 2008 12:09:58:165) Started server thread: S-0001. (8101)
S-0002>(Nov 28, 2008 12:09:58:265) Started server thread: S-0002. (8101)
S-0003>(Nov 28, 2008 12:09:58:365) Started server thread: S-0003. (8101)
S-0004>(Nov 28, 2008 12:09:58:466) Started server thread: S-0004. (8101)
S-0005>(Nov 28, 2008 12:09:58:566) Started server thread: S-0005. (8101)
S-0001>Started server: "c:\prog91e\bin\jvmStart.exe" -o eventmgr -p newConsole "c:\prog91e\bin\_progres.exe" -ubpid 3120 -web -wtbhostname 10.118.1.131 -wtbport 4307 -wtaminport 3202 -wtamaxport 3502 -wtbname wsbroker1 -wtainstance 1 -ubpropfile "c:\prog91e\properties\ubroker.properties" -logname wsbroker1 -p web\objects\web-disp.p -weblogerror (8108)
S-0002>Started server: "c:\prog91e\bin\jvmStart.exe" -o eventmgr -p newConsole "c:\prog91e\bin\_progres.exe" -ubpid 3120 -web -wtbhostname 10.118.1.131 -wtbport 4308 -wtaminport 3202 -wtamaxport 3502 -wtbname wsbroker1 -wtainstance 2 -ubpropfile "c:\prog91e\properties\ubroker.properties" -logname wsbroker1 -p web\objects\web-disp.p -weblogerror (8108)
S-0003>Started server: "c:\prog91e\bin\jvmStart.exe" -o eventmgr -p newConsole "c:\prog91e\bin\_progres.exe" -ubpid 3120 -web -wtbhostname 10.118.1.131 -wtbport 4309 -wtaminport 3202 -wtamaxport 3502 -wtbname wsbroker1 -wtainstance 3 -ubpropfile "c:\prog91e\properties\ubroker.properties" -logname wsbroker1 -p web\objects\web-disp.p -weblogerror (8108)
S-0004>Started server: "c:\prog91e\bin\jvmStart.exe" -o eventmgr -p newConsole "c:\prog91e\bin\_progres.exe" -ubpid 3120 -web -wtbhostname 10.118.1.131 -wtbport 4310 -wtaminport 3202 -wtamaxport 3502 -wtbname wsbroker1 -wtainstance 4 -ubpropfile "c:\prog91e\properties\ubroker.properties" -logname wsbroker1 -p web\objects\web-disp.p -weblogerror (8108)
S-0005>Started server: "c:\prog91e\bin\jvmStart.exe" -o eventmgr -p newConsole "c:\prog91e\bin\_progres.exe" -ubpid 3120 -web -wtbhostname 10.118.1.131 -wtbport 4311 -wtaminport 3202 -wtamaxport 3502 -wtbname wsbroker1 -wtainstance 5 -ubpropfile "c:\prog91e\properties\ubroker.properties" -logname wsbroker1 -p web\objects\web-disp.p -weblogerror (8108)
NameServer>(Nov 28, 2008 12:10:07:959) Broker registered with NameServer. (8556)
serverWatchdog>(Nov 28, 2008 13:10:07:443) Currently running 5 servers ... Max busy in interval= 0
serverWatchdog>(Nov 28, 2008 13:10:07:463) Attempting to trim 4 server(s)
serverWatchdog>(Nov 28, 2008 13:10:07:543) Shutdown requested: S-0003 ... (8051)
serverWatchdog>(Nov 28, 2008 13:10:07:543) Shutdown requested: S-0004 ... (8051)
serverWatchdog>(Nov 28, 2008 13:10:07:543) Shutdown requested: S-0001 ... (8051)
serverWatchdog>(Nov 28, 2008 13:10:07:553) Shutdown requested: S-0002 ... (8051)
serverWatchdog>(Nov 28, 2008 13:10:07:553) Trimmed 4 server(s)



[RealHeavyDude]

Did you set up a CGI alias or copy the cgiip.exe in the scripts directory of your web sever so that know how to deal with requests it should redirect to the cgiip.exe? It appears to me that your web server is not correclty linked with your WebSpeed broker because it tells you just that: It can't find it.

Heavy Regards, RealHeavyDude.



[Srinivasa Rao]

Please can you provide the details for setting up the CGI alias or copy the cgiip.exe in the scripts directory of your web server.

Thanks and Regards,
Srinivas.



[RealHeavyDude]

Just copy the cgiip.exe and cgiip.wsc that resides in the bin subfolder of the installation to the scripts directory of whatever Web Server you are using. Setting up a CGI alias for that might come in handy if you have more than one version of Progress / OpenEdge installed and want to use all of them with the same Web Server instance.

Heavy Regards, RealHeavyDude.



[Srinivasa Rao]

I copied cgiip.exe and cgiip.wsc,now it's working fine.
Thanks a lot to RealHeavyDude.

Regards,
Srinivas
